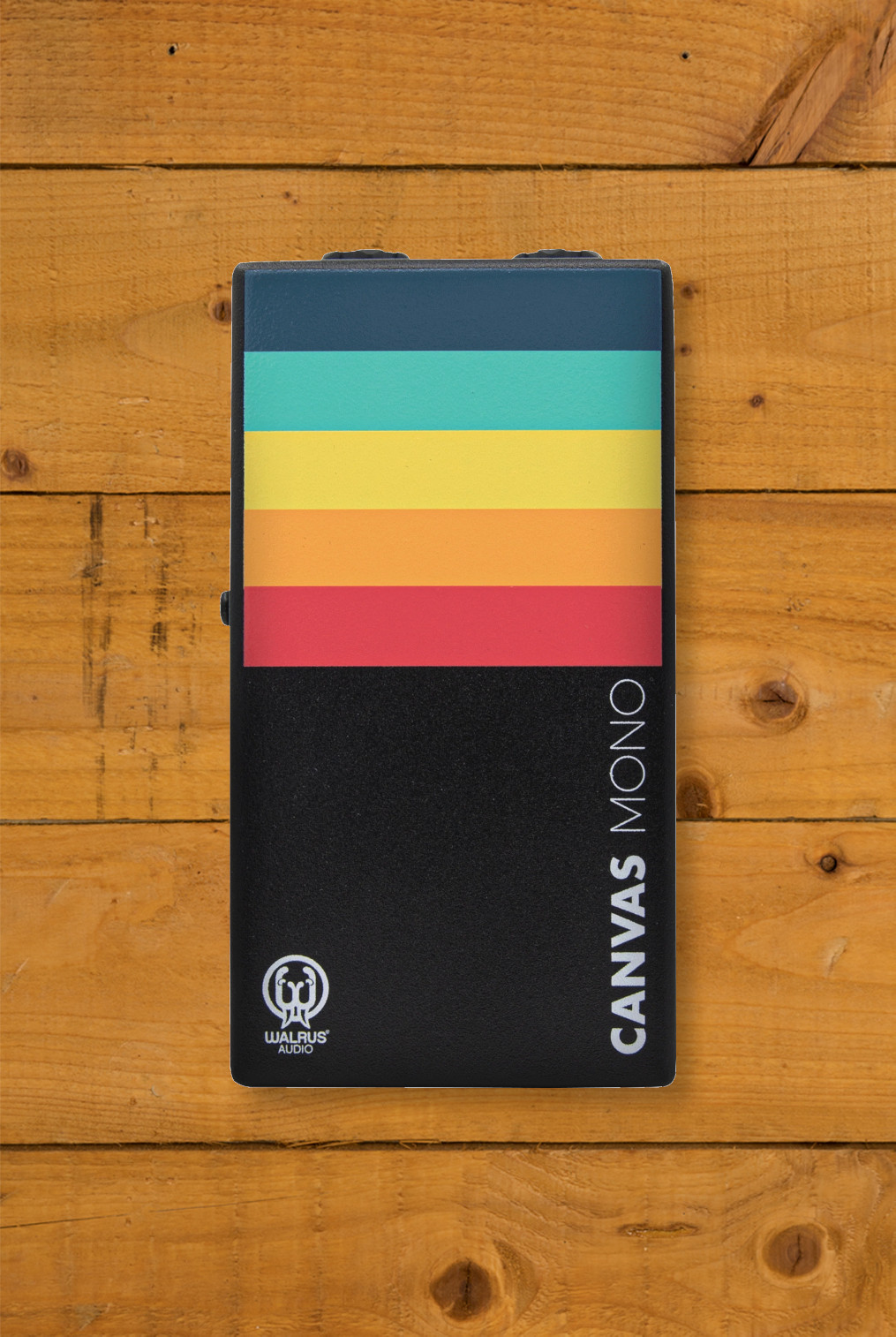

Walrus Audio Canvas | Line Isolator/D.I.
A Canvas For Your Sonic Art
The Canvas Mono is a Direct Box/Line Isolator designed to remove any resistance between you and your audience by giving a pristine sonic foundation to build your masterpiece upon. From houses of worship to the dive bar downtown, Canvas Mono is built to be the performance tool that goes wherever you are making your music.
£143.99
£193.20
View In Showroom
Request an appointment with one of our team
UK Next day delivery
Fast shipping with trusted couriers, get it next day!
Free UK delivery over £99
What you see is what you will get!
WAYS TO PAY:
You are the artist. Your sound is the paint, and this is your canvas. The Canvas Mono is a Direct Box/Line Isolator designed to remove any resistance between you and your audience by giving a pristine sonic foundation to build your masterpiece upon. From houses of worship to the dive bar downtown, Canvas Mono is built to be the performance tool that goes wherever you are making your music.
Canvas Mono is a Passive Line Isolator (LI) and Direct Injection (DI) device that converts your unbalanced signal into a balanced signal for interfacing properly with your recording interface or mixer at front-of-house. If you're using an amp-in-a-box (a DSP Guitar Rig such as the Strymon Iridium or Walrus ACS1) or running an acoustic or bass guitar direct, then the Canvas Mono is your new bridge to the front-of-house. The Canvas Mono packs everything you need from a DI/LI into a standard pedal-sized enclosure designed to look great right on top of your board.
Needing a stereo solution? Here at Peach Guitars we also stock the Canvas Stereo.
Canvas Mono Features
- Flat frequency response from 20Hz-20kHz
- Converts ¼" unbalanced input to XLR balanced output.
- Transformer isolated output.
- Sum switch turns the Thru channel into a second input when engaged, allowing stereo input signals to be summed to the XLR output.
- Pad: Enables a -15dB input pad (Only in D.I. mode) for reducing hot signals in order to minimise distortion.
- D.I./L.I.: Choose between DI or LI (Out for DI, In for LI)
- GND Lift: Isolates the GND pin on XLR to help reduce hum if present. Leave out for normal operation.
- Custom wound transformers for low THD (Total Harmonic Distortion) and full frequency response.
Direct Injection:
Use DI mode when connecting an unbalanced, high impedance source (Electric Guitar, Bass Guitar, etc). The signal will be reduced by -20dB (-35dB with pad engaged) and converted to a balanced signal via the transformer connected to the XLR output. Use the gain on your mixer or preamp to bring the signal up to line level.
Line Isolator:
Use LI mode when connecting your unbalanced, low impedance source (Amp + Cab Sim like the ACS1, keys, etc.). The signal will remain full volume and be converted to a balanced signal via the transformer connected to the XLR output. Less preamp gain will be required in LI mode.
DI or LI?
When deciding between DI or LI, check with the manufacturer of your gear to find the output impedance of the device you are wanting to interface with. For a general guide:
High Impedance = anything above 1k = Use DI
Low Impedance = less than 1k = Use LI
Troubleshooting:
This is a passive device, so you will not damage anything if connected improperly, but it could affect the signal level and frequency response if not connected properly. This is an easy thing to test since the LI/DI switch is built into Canvas. If you lose high-frequency information when using LI mode, then you should probably be in DI mode.
