CIOKS Future Power Generation | CIOKS 8 Expander

When the celebrated CIOKS DC7 was released, it definitely caused a stir in the PSU market. With its ground-breaking low profile, low weight and high output connectivity, DC7 has quite rightly found its way onto thousands of pedalboards the world over. Now with the CIOKS 8 Expander, the range has increased to provide pedal devotees even more low noise power options for their sonic treasures.

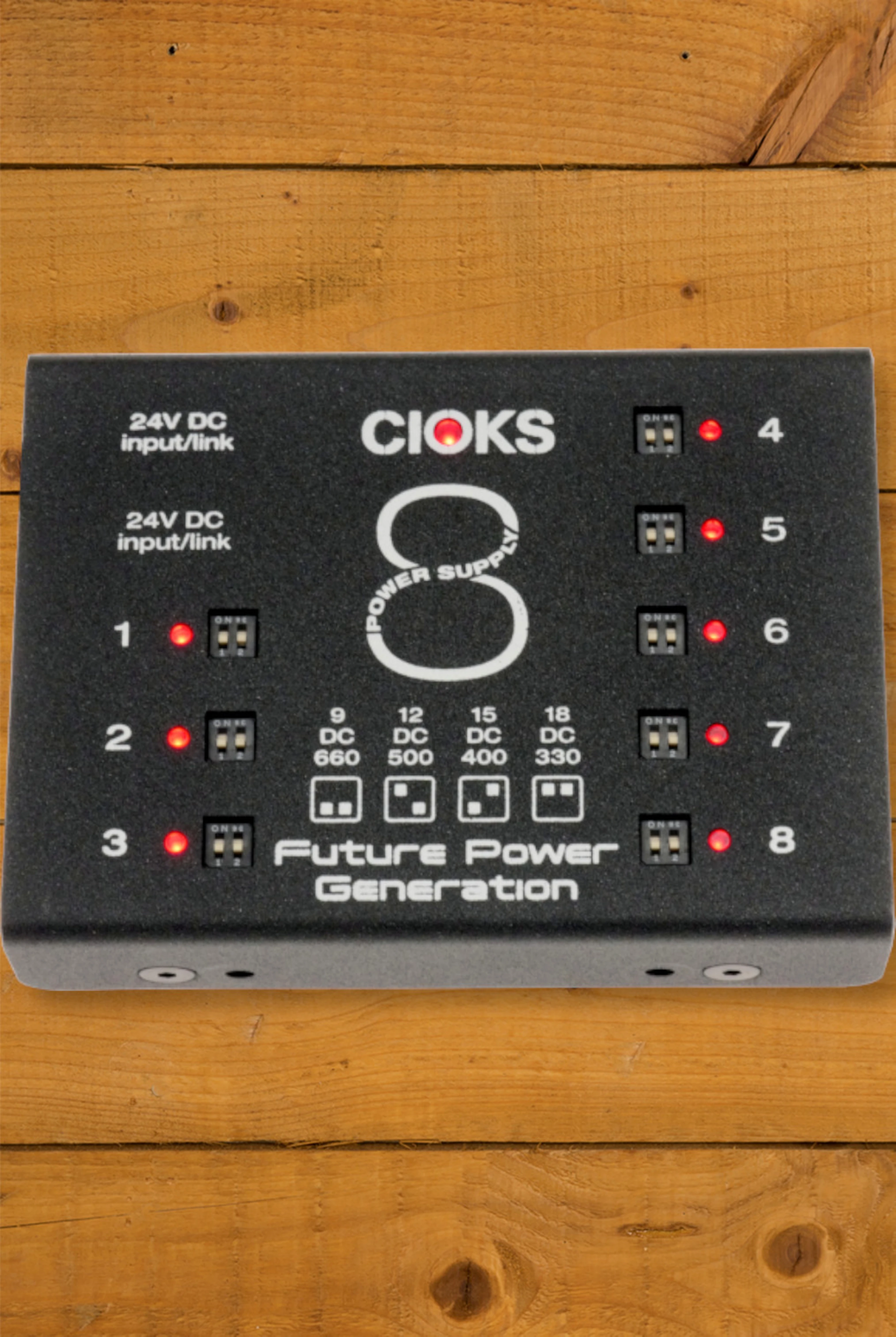

CIOKS 8 is our largest switch-mode power supply extender. Not only is CIOKS 8 the perfect companion to the CIOKS DC7 (via the DC7’s 24 V outlet), but it can also be used and offer clean power from other PSUs that has a 24 V DC outlet.

With its eight additional outlets, individually selectable between 9, 12, 15 and 18V DC, each outlet can deliver up to a staggering 660 mA! To use CIOKS 8 as an extension to DC7, simply use the included DC Link cable to connect the CIOKS 8 to the courtesy 24V outlet on your DC7 and you are good to go. In case you want to use CIOKS 8 as a stand-alone power supply you can power it with any 24V DC adapter with the appropriate DC plug. To get the full 6W output power on all 8 isolated outlets, the adapter used to power CIOKS 8 should have an output power of 60W.

If you are looking for a super powerful power supply setup to power a large pedalboard, the combination of a CIOKS DC7 plus a CIOKS 8 will definitely be a stunning solution, as this combo will give you 15 isolated outlets in total with 4 switchable voltages on each outlet plus a 5V USB outlet to charge your smartphone or tablet (courtesy of DC7).

• Ground-breaking low profile and weight
• 8 isolated DC-outlets, each providing up to 660 mA (at 9 V DC) - total maximum output power 48 W*
• Ultra-low noise achieved by multi-stage filtering
• Independently selectable voltage on each outlet
• Global overload status LED
• Mounting hardware for Pedaltrain and Templeaudio boards included
• Compatible with CIOKS GRIP - for drill-free mounting on Pedaltrain boards
• 24 V DC link and 12 Flex cables included
• Designed in Denmark, assembled in Poland

Input/Through:  Dual 24 V DC

Outlet 1-8:

• 9 V DC / 660 mA or
• 12 V DC / 500 mA or
• 15 V DC / 400 mA or
• 18 V DC / 330 mA each

Output power:  max. 48 W in total*
* Total output power of 48 W can be achieved provided an appropriate and sufficient input power source is applied. For full output power please use a 24 V DC source with min. 60 W of power capability such as CIOKS DC7).

Flex cables included:
Total of 12 Flex cables, all 2.1mm (BOSS standard), are included. The user is able to power 11 pedals with the included Flex kit.

1 x 1015 - Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 30cm (black)
3 x 1030 - Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 30cm (black)
2 x 1050 - Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 50cm (black)
1 x 2050 - Type 2 - 5,5/2,1mm DC plug, centre positive, L-shape, 50cm (red)
1 x 4050 - Type 4 - 5,5/2,5mm DC plug, centre positive, L-shape, 50cm (green)
1 x 5050 - Type 5 - 3,5mm Jack plug, tip positive, L-shape, 50cm (black)
1 x 1035 - Split Flex type 1, 30+50cm (black)
1 x 1533 - 3-way daisy chain Flex type 1, 30-30-50cm (black)
