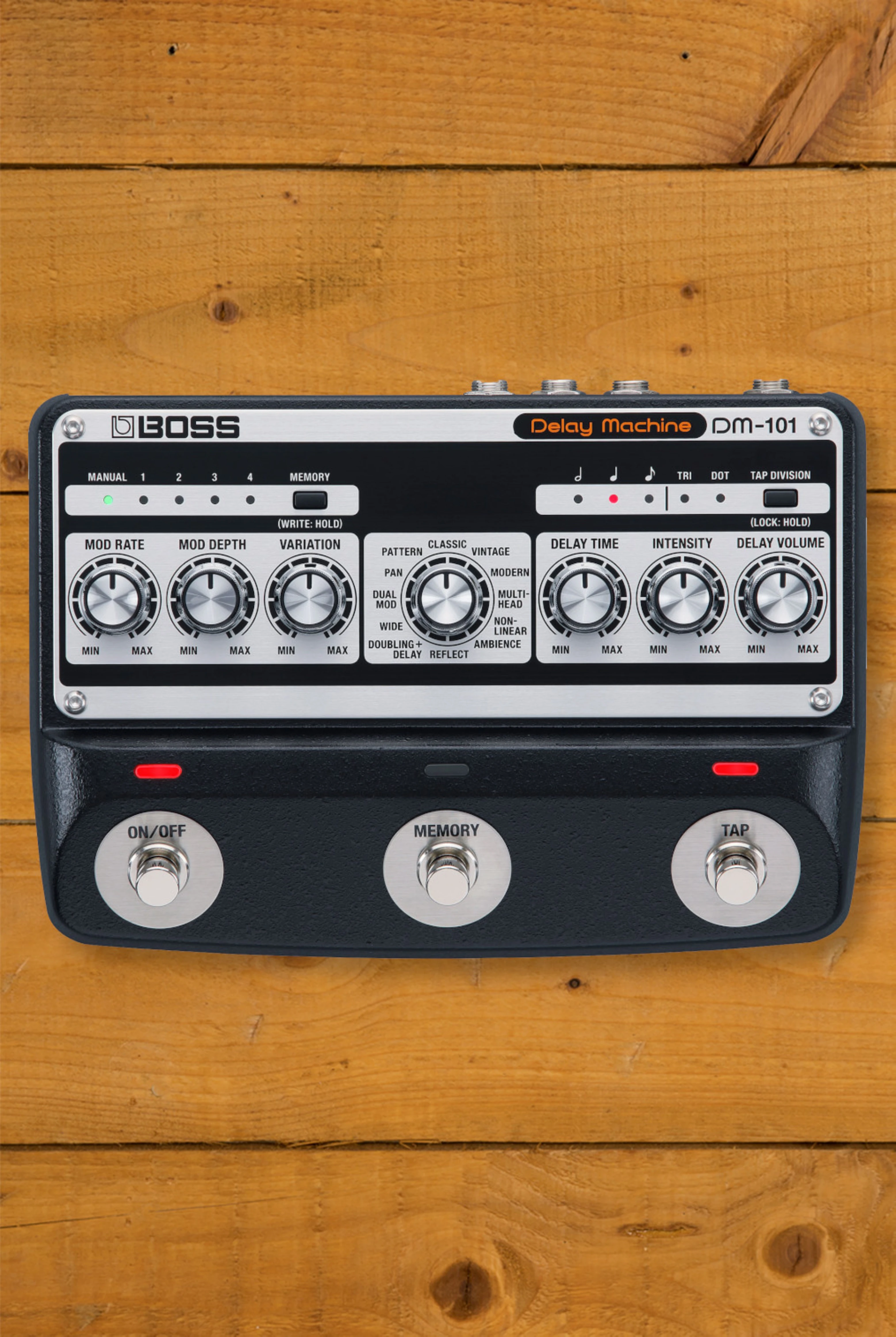

BOSS DM-101 Delay Machine

The BOSS DM-101 Delay Machine offers a comprehensive analog delay experience, blending classic sound with contemporary functionality. This pedal is driven by eight bucket-brigade device (BBD) chips, managed by intelligent CPU control, resulting in twelve distinct delay modes. Crucially, the DM-101 maintains a 100 percent analogue signal path throughout, ensuring the warm, saturated, and characterful tones associated with traditional analog delays.

A significant advantage of the DM-101 is its versatility. It provides stereo operation with flexible routing options, allowing for a wide range of spatial effects. Users can precisely adjust the modulation rate and depth using dedicated knobs, and a Variation knob offers further parameter control unique to each of the twelve modes. This enables a deep level of sonic exploration, from subtle thickening to more pronounced modulation effects.

The pedal also incorporates modern features expected by today's musicians. It offers selectable carryover, allowing delay trails to naturally decay even when the effect is bypassed. A tap tempo function, along with a tap division switch, simplifies the creation of rhythmic delays. MIDI input and output via mini TRS connectors expand its integration capabilities, providing access to 127 user memory slots, MIDI clock synchronisation, and remote control options.

For live performance and studio work, the DM-101 provides practical features. It includes four onboard memory slots for quick recall of favourite settings, in addition to the current panel settings. The memory capacity can be significantly expanded to 127 user memories accessible via MIDI program change messages. Furthermore, the pedal allows for expanded control through external footswitches and expression pedals, offering real-time manipulation of parameters.

The DM-101's twelve modes cater to a broad spectrum of delay needs. "Classic" mode delivers an extended traditional analog delay sound with up to 1200 milliseconds of delay time, with adjustable modulation waveforms. "Vintage" mode specifically emulates the sound of the iconic BOSS DM-2, also with variable modulation characteristics. The "Modern" mode offers a uniquely clear analog delay tone with enhanced high-frequency response and a maximum delay time of 840 milliseconds.

For more experimental textures, the "Multi-Head" mode simulates a tape delay with an analog BBD flavour, offering ten different head combinations via the Variation knob. "Non-Linear" creates consecutive short delays with increasing volume, while "Ambience" simulates the sound of a small room with adjustable size and early reflections. "Reflect" provides a reverb-like stereo delay effect with adjustable pre-delay.

The DM-101 also excels in stereo applications. "Doubling+Delay" combines a doubled sound with a longer delay, with adjustable balance across the stereo field. "Wide" offers a spacious sound through offset left and right delay times. "Dual Mod" applies different modulation phase settings to each output for a wide stereo image. "Pan" routes tapped delays with varying times across the stereo spectrum, and "Pattern" mode provides ten different rhythmic stereo delay patterns.

By utilising eight 2048-stage BBD chips and precise CPU control, the DM-101 achieves a balance between classic analog warmth and extended functionality. This design allows for cleaner sounds and longer delay times than some traditional analog delays, while retaining the desirable sonic characteristics of BBD circuitry. The flexible output options allow for standard blended operation, as well as easy reconfiguration for wet/dry and wet-only parallel setups, making the BOSS DM-101 a powerful and adaptable tool for any musician seeking authentic analog delay tones with modern control.
