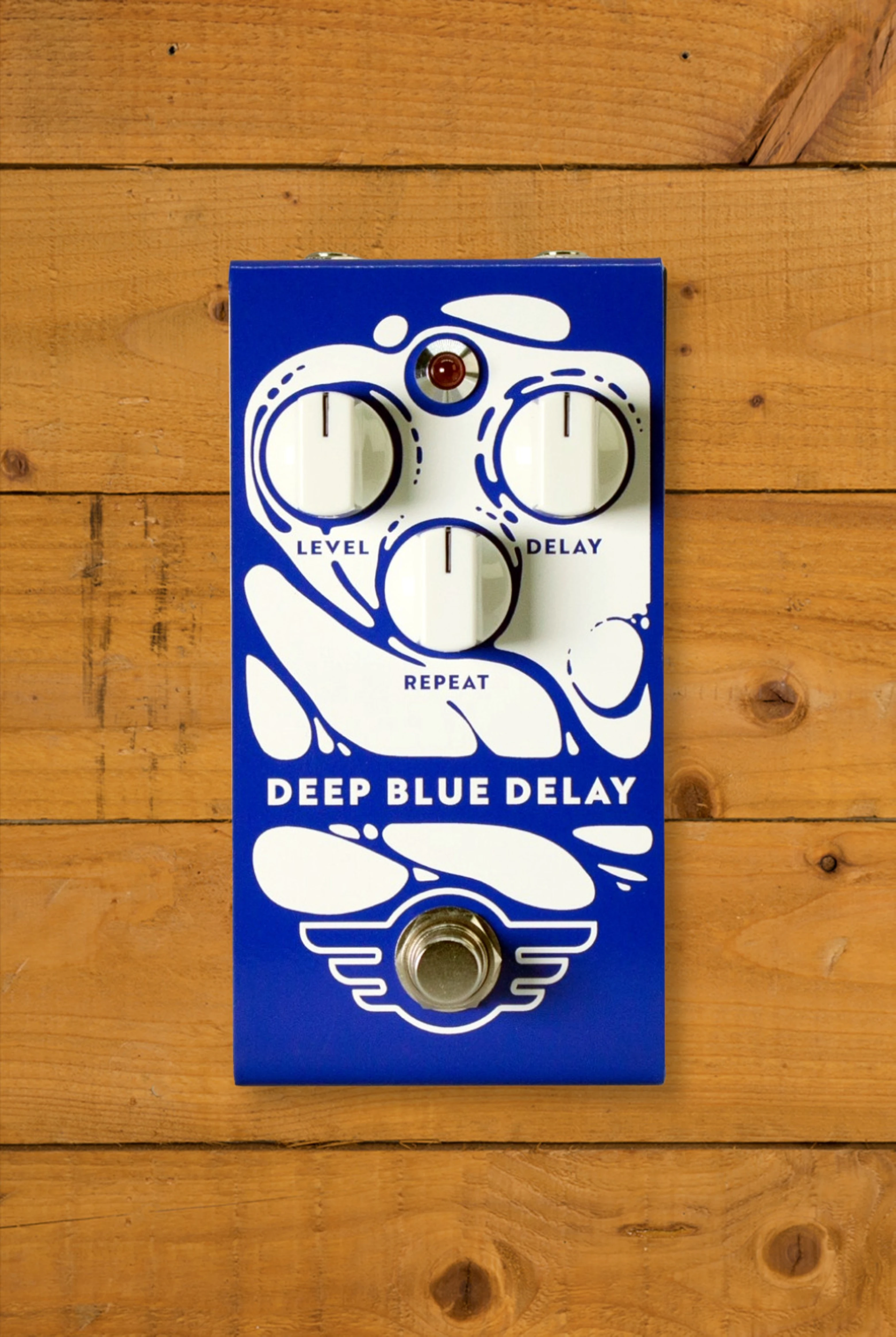

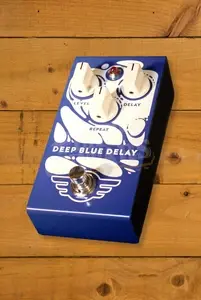

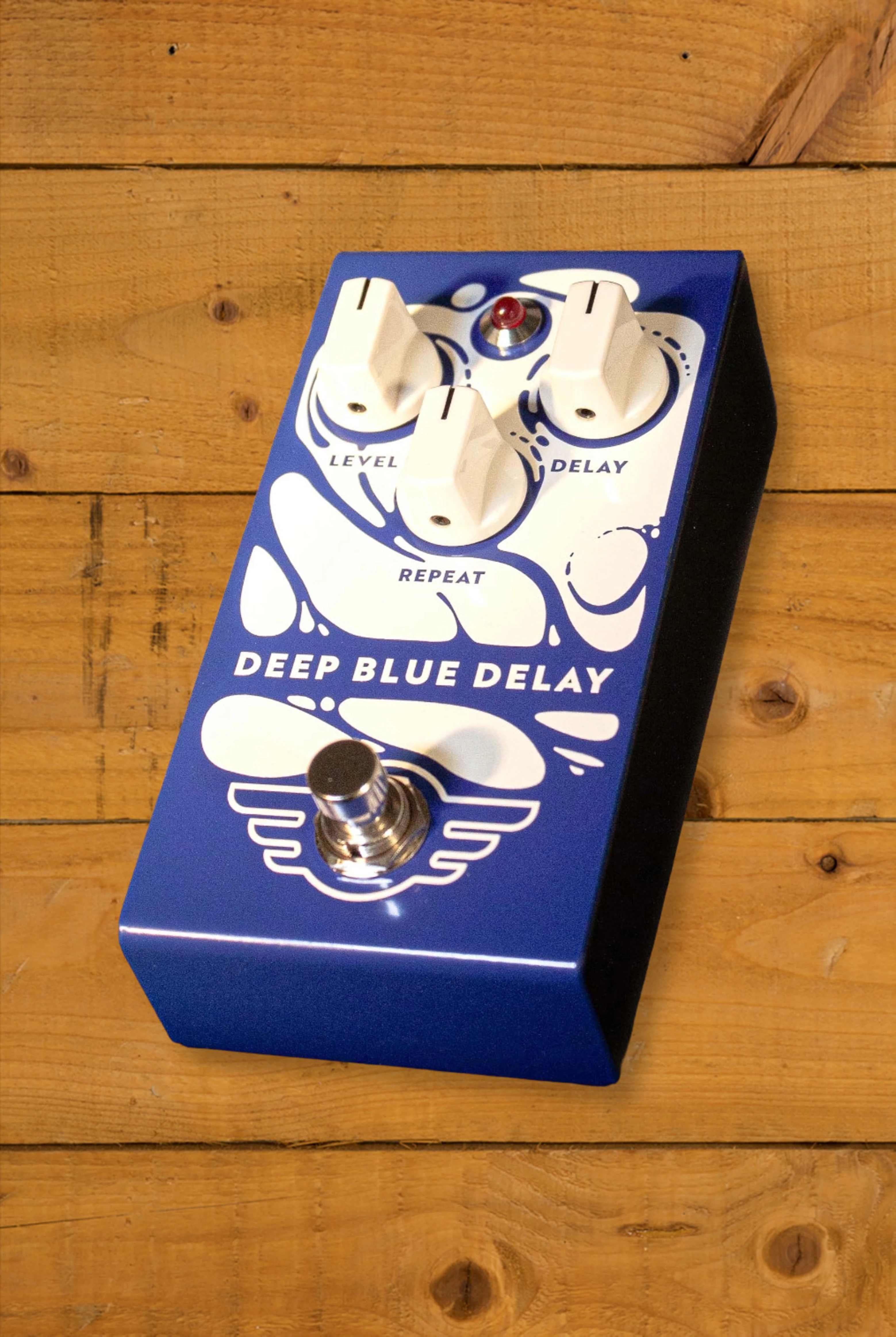

Mad Professor Handwired | Deep Blue Delay

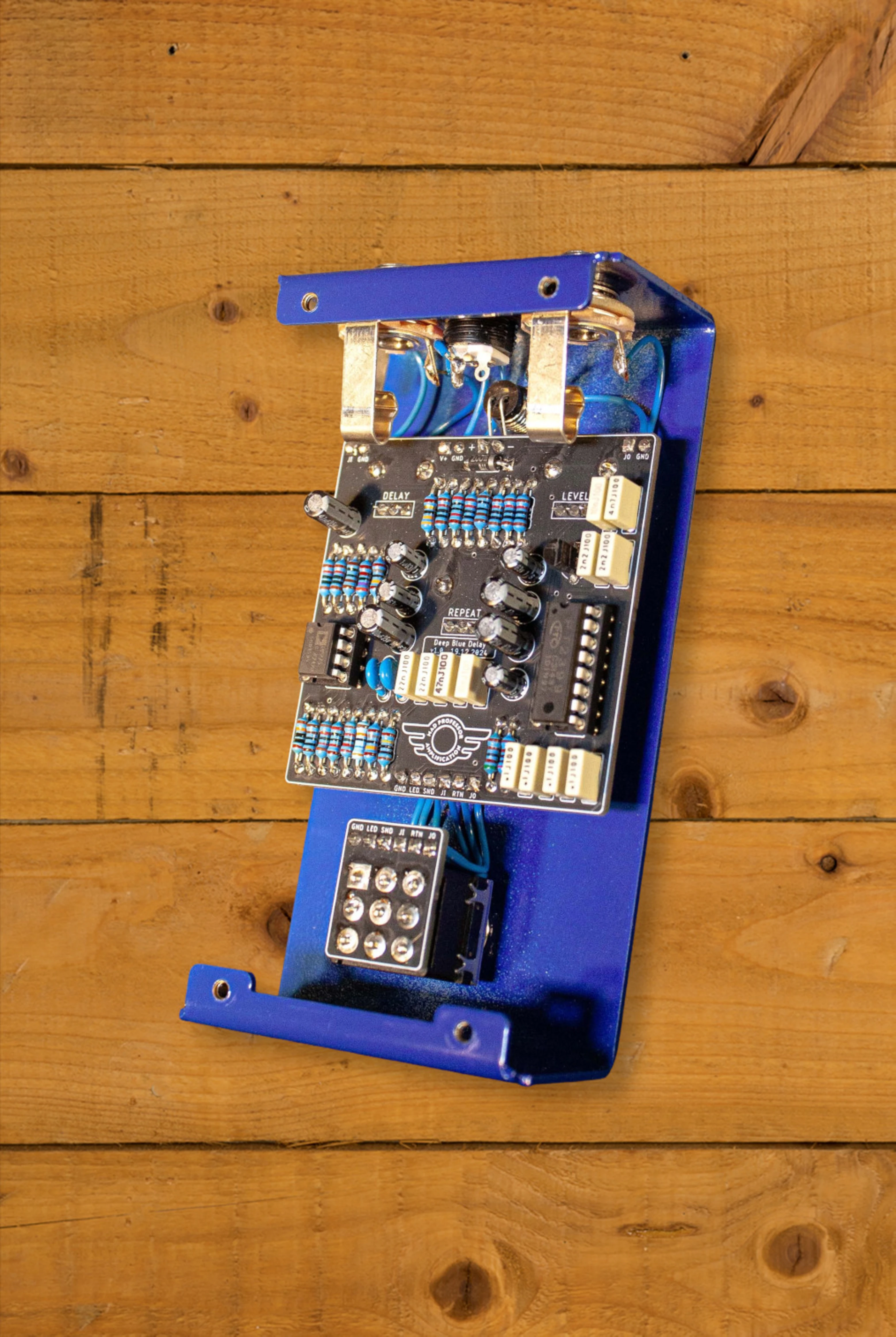

The new and improved Handwired series pedals feature quality through hole components, Alpha pots and switches and Switchcraft jacks all housed in a custom sheet metal enclosure. Pedals are also equipped with top mounted jacks. All Handwired series pedals are made in Finland.

The Deep Blue Delay is a natural sounding digital delay, with analog direct signal path designed using analog amplifiers with no filtering. With it's simple and intuitive controls, the DBD gives you easy access to classic delay tones reminiscent of vintage tape and analog delays.

The DBD is specially designed to work well with both clean and distorted tone and you can use the pedal before or after distortion. You can also use the pedal in front of an amplifier or in the effects loop. There are no noise reduction circuits, which keeps echo decay as natural as possible. The echo signal has a tuned filtering to allow extreme settings without interference.

• LEVEL: Sets the level of delayed signal mixed with dry guitar tone, fully CCW there is only dry (uneffected) guitar signal.
• DELAY: Controls the delay time from 25 ms (fully CCW) to 450 ms (fully CW).
• REPEAT: Controls the repeats of the delay signal, fully CCW gives one repeat and at fully CW you get infinite feedback.
• Current draw at 9VDC approx. 25-32mA depending on delay setting
• Input impedance - 180 K
• Output impedance - 10 K
• Voltage supply range - 8-15V
• Maximum input voltage 2V peak 650 mV rms
• Signal to noise ratio 80 dB
• Delay time approximately 25 ms to 450 ms
• True bypass
• CAUTION! Never operate the unit with its bottom removed or damage will most likely occur.
• DC eliminator 2.1 mm plug centre negative and positive sleeve.
• The Deep Blue Delay is protected against wrong DC eliminator polarity.
• Use recommend voltage for best results.
• Handmade in Finland
