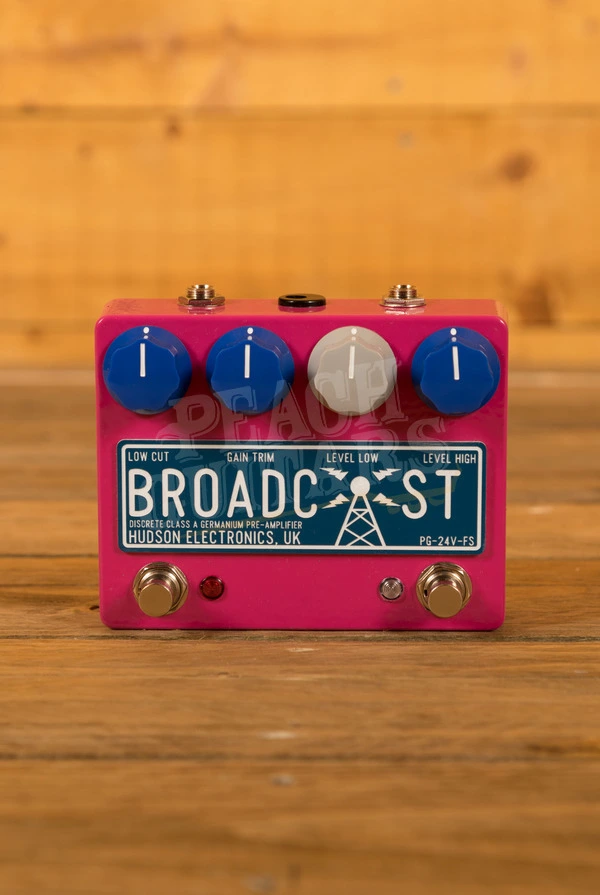

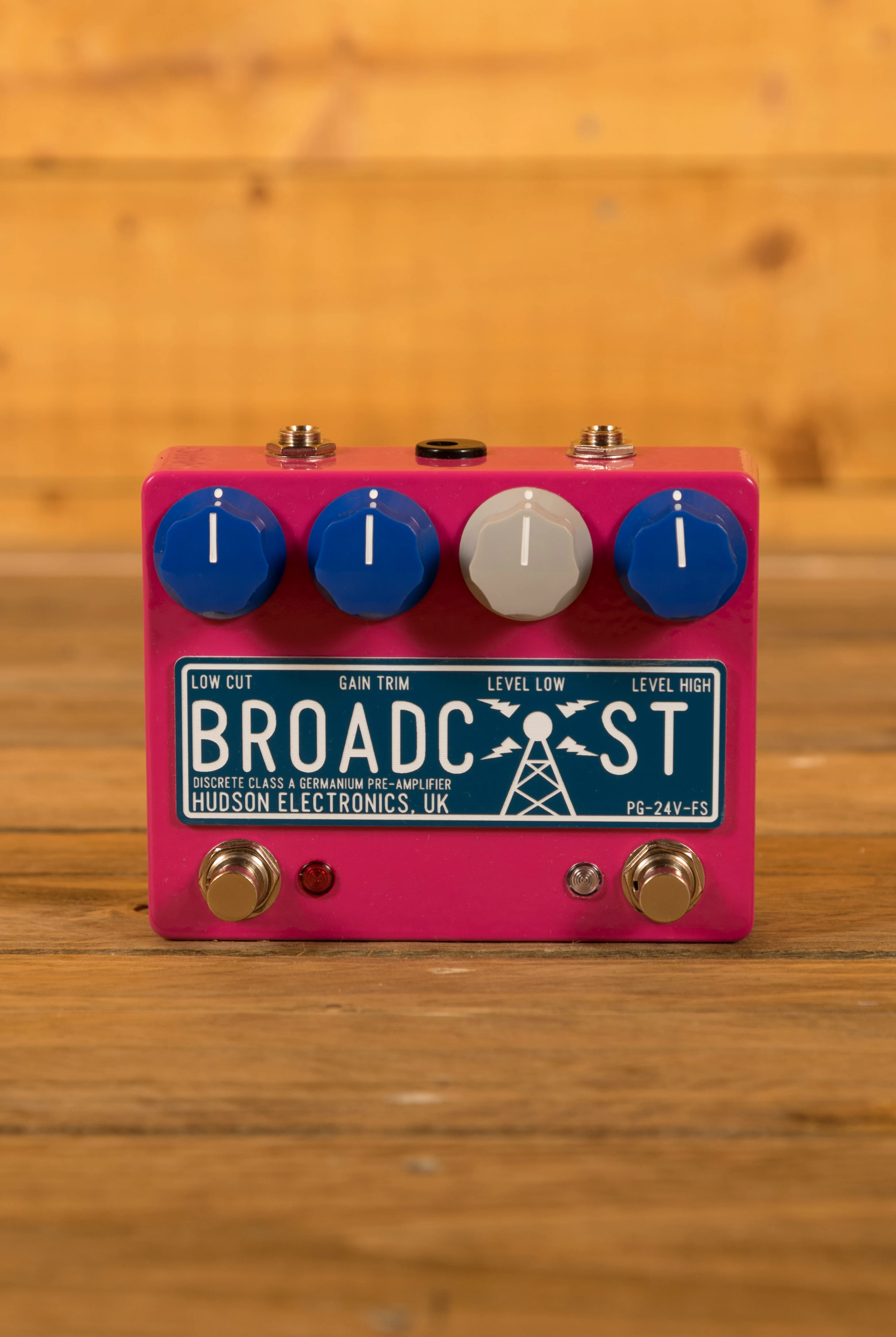

Hudson Electronics Broadcast PG-24V-FS Dual Footswitch Magenta
This new version of the Hudson Broadcast features Blue and Grey controls, updated pictures to follow.
- NOS Germanium transistor in the drive section
- TRIAD Magnetics steel-core transformer chosen for the way it saturates
- BI Technologies potentiometers
- Lumberg jack sockets (rated for >5000 cycles)
- Heavy duty foot switches (rated for >30,000 cycles)
LEFT FOOT SWITCH - Bypasses the pedal (red LED indicates the pedal is active)
RIGHT FOOT SWITCH - Toggles between LOW and HIGH gain modes (blue LED indicates HIGH gain mode is selected)
LEVEL LOW - Controls the volume of the pedal in LOW gain mode
LEVEL HIGH - Controls the volume of the pedal in HIGH gain mode
GAIN TRIM - Controls the gain level (both in LOW and HIGH gain modes) of the Broadcast (at higher settings the high-end of the signal is gently rolled off)
LOW CUT - Attenuates the low-end of the Broadcast (since this control lies at the front
end of the Broadcast's circuitry, it is interactive with the gain controls)
INTERNAL TRIMMERS - Sets the gain range for each mode. The LOW gain mode is located to the left and the HIGH to the right.
IMPORTANT!
THIS VERSION OF THE BROADCAST CONTAINS A VOLTAGE BOOSTER TO INCREASE THE VOLTAGE OF THE POWER SUPPLY UNIT FROM 9V UP TO 24V. DO NOT ATTEMPT TO RUN THIS PEDAL AT POWER SUPPLY VOLTAGES HIGHER THAN 9.6VDC AS THIS MAY DAMAGE THE PEDAL AND VOID ITS WARRANTY!
£179.00
View In Showroom
Request an appointment with one of our team
UK Next day delivery
Fast shipping with trusted couriers, get it next day!
Free UK delivery over £99
What you see is what you will get!
WAYS TO PAY:
It's back!
We've teamed up once again with the fine folks at Hudson Electronics for this exclusive new Limited Edition Broadcast. The last version we had in sold out extremely quickly so get in there while you can!
This time finished in striking Tele Magenta with blue and white appointments. It still contains the higher voltage for bigger headroom, with two footswitches for running each gain mode, each with level control.
The Broadcast is a transformer-coupled, discrete Class-A germanium circuit, that takes its inspiration from classic recording consoles of the 1960s. The unique way in which the circuit saturates and colours your signal can be used to produce biting clean boosts, subtly coloured and thickened signals with a frayed-at-the-edge quality or - when pushed - an individual sounding overdrive with a fuzzy, fried texture.
The PG-24V-FS has an internal voltage boost circuit that increases the 9 volts coming in from the power supply up to 24 volts. The increased voltage gives extra headroom and a tighter low end - fantastic if you are looking for a little less saturation and grit, but without losing that unique sound of the Broadcast. On the PG-24V-FS we have made the gain mode (LOW or HIGH) selectable via the right hand foot switch (the blue LED indicates when the pedal is in HIGH gain mode) as well as giving each mode its own LEVEL control. In addition, the PG-24V-FS has two internal trimmers that allows you to fine tune the amount of gain each mode has.
